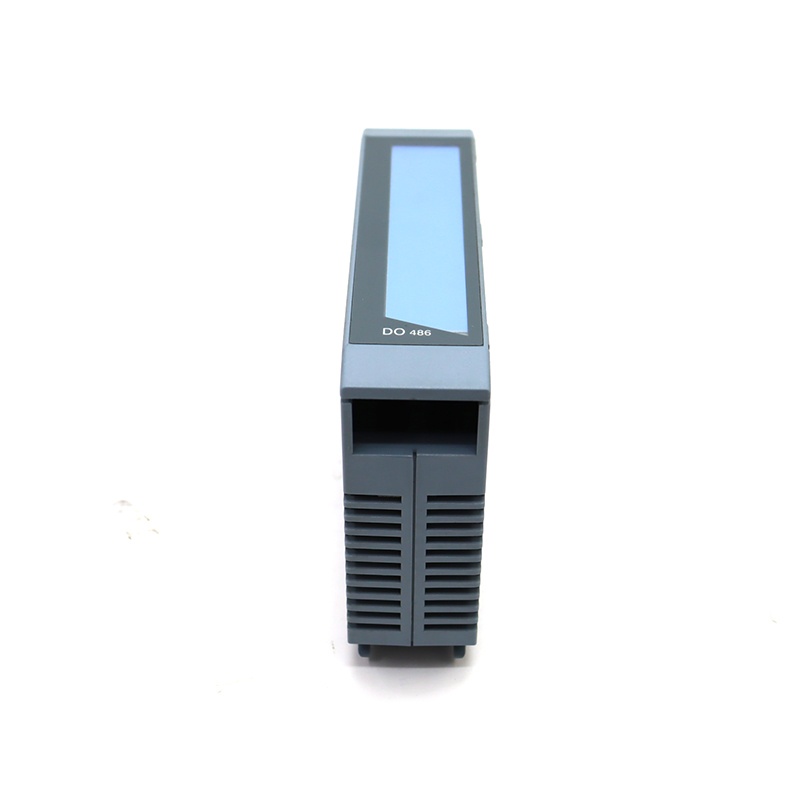

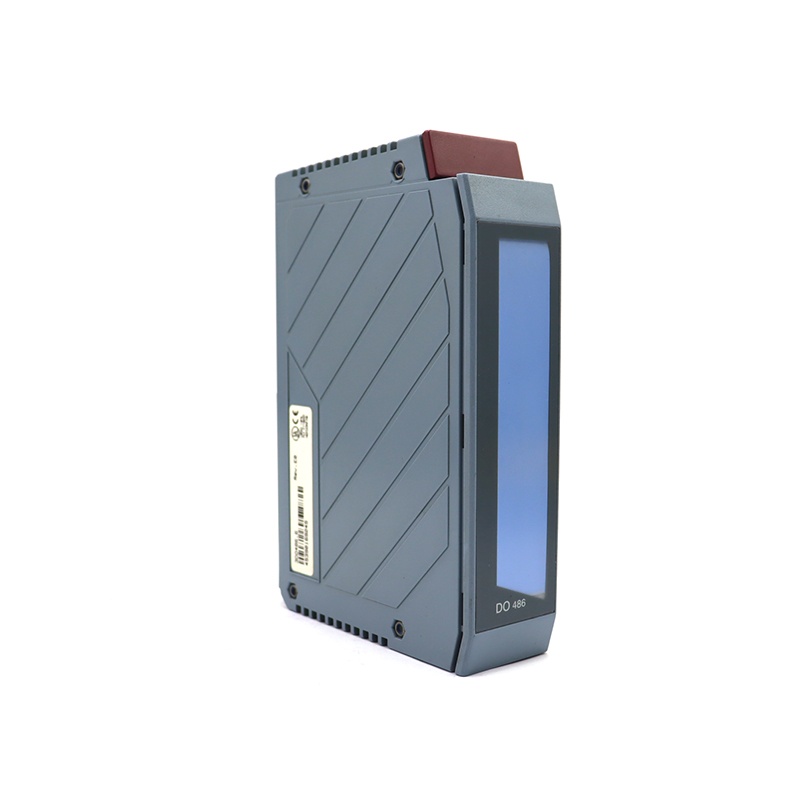

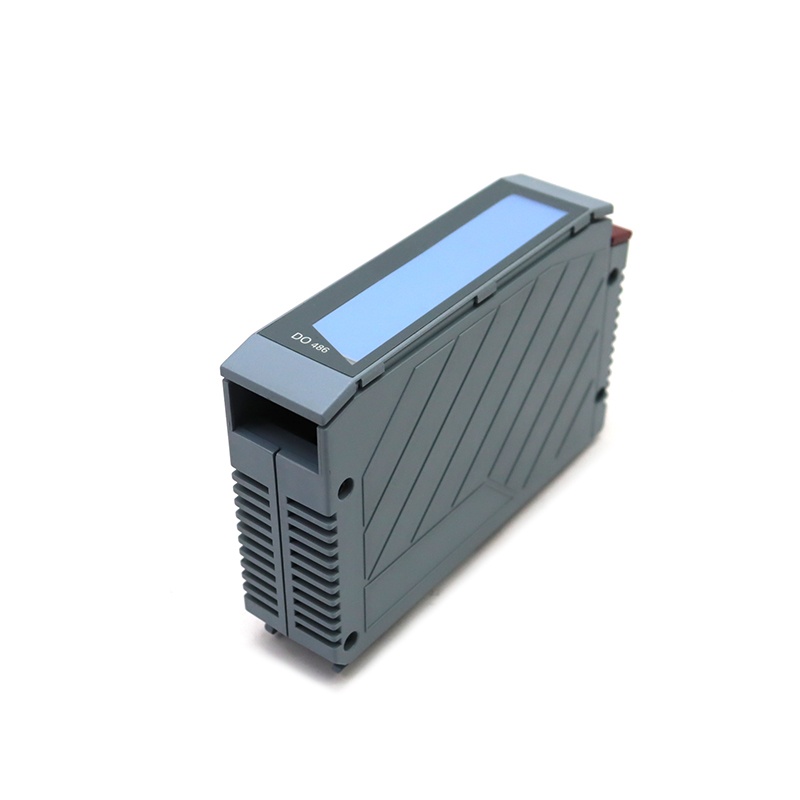

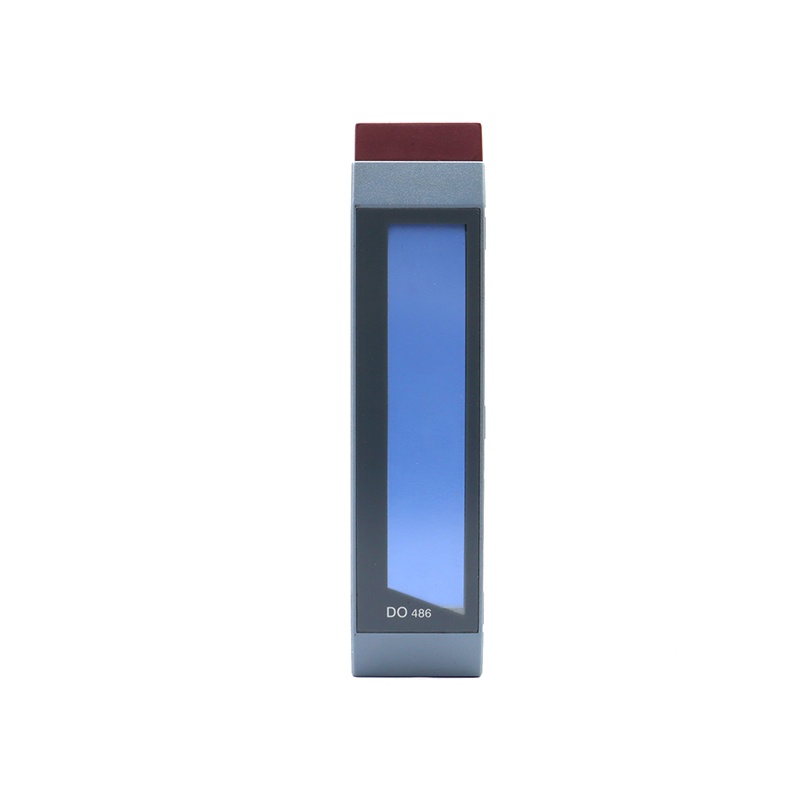

The 3DO486.6 digital output module from B&R Automation provides 32 electronic (transistor) outputs for switching 24 VDC loads such as contactors, valves, signal lamps, and small actuators. Each output is rated up to 0.5 A, which allows the module to drive a large number of loads while keeping wiring compact in the control cabinet. The outputs are organized in two electrically isolated output groups, improving noise immunity and allowing separation of different machine sections or voltage domains within a single module.
As part of a B&R modular I/O system, the 3DO486.6 mounts on the corresponding base and connects to the controller backplane, providing high‑density digital outputs without consuming excessive rack space. To wire the outputs, the module requires two TB718 terminal blocks, which provide screw or spring‑clamp connections (depending on variant) for all 32 channels plus commons and supply terminals. Typical applications include machine and plant automation where many 24 VDC outputs are needed—such as packaging lines, assembly machines, and material handling systems.
The transistor outputs are designed for fast switching and long life with no mechanical wear, making the module well suited for high‑frequency switching and applications where relay contacts would wear out quickly. Integrated diagnostics (module‑ and channel‑level, depending on system configuration) can be evaluated by the controller to detect overloads or wiring faults and to simplify troubleshooting during commissioning and maintenance.
