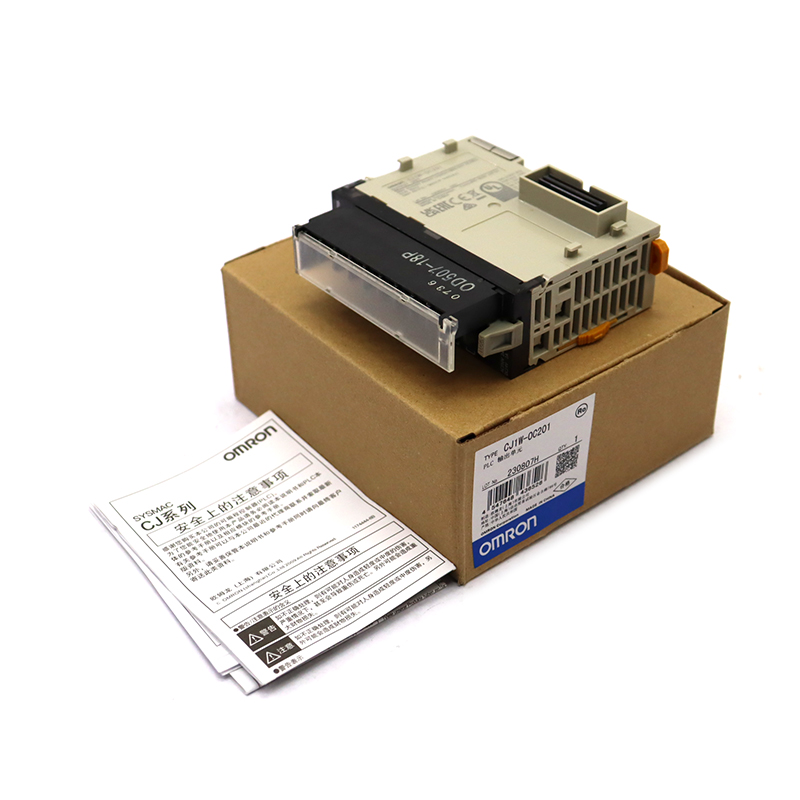

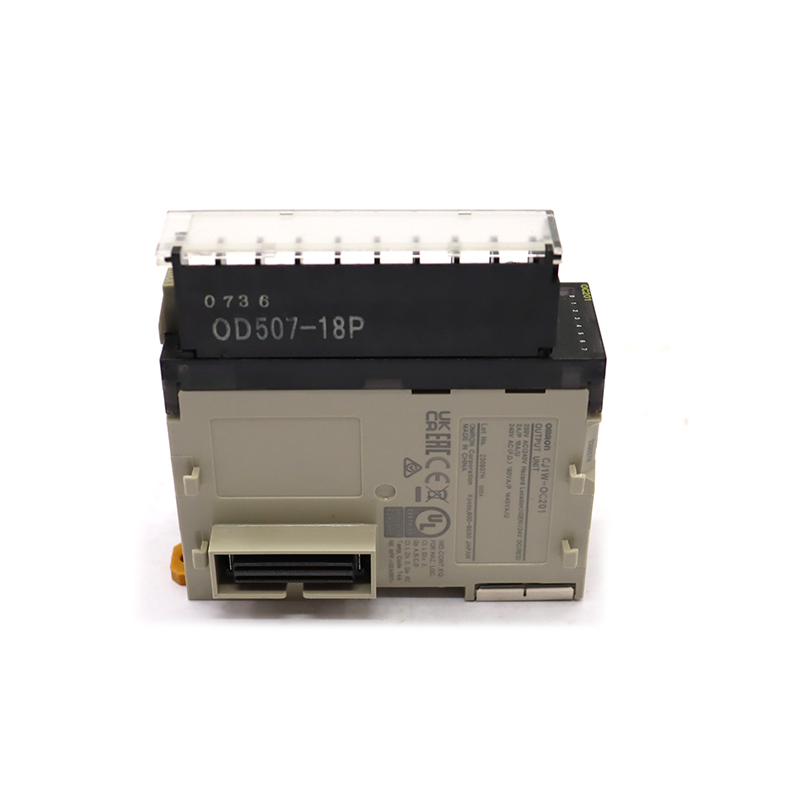

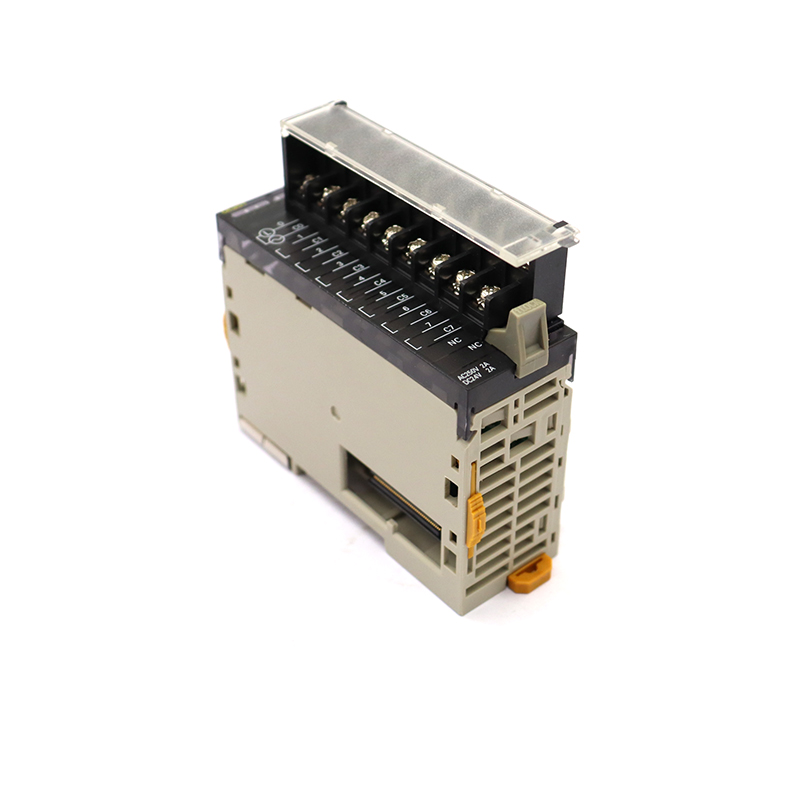

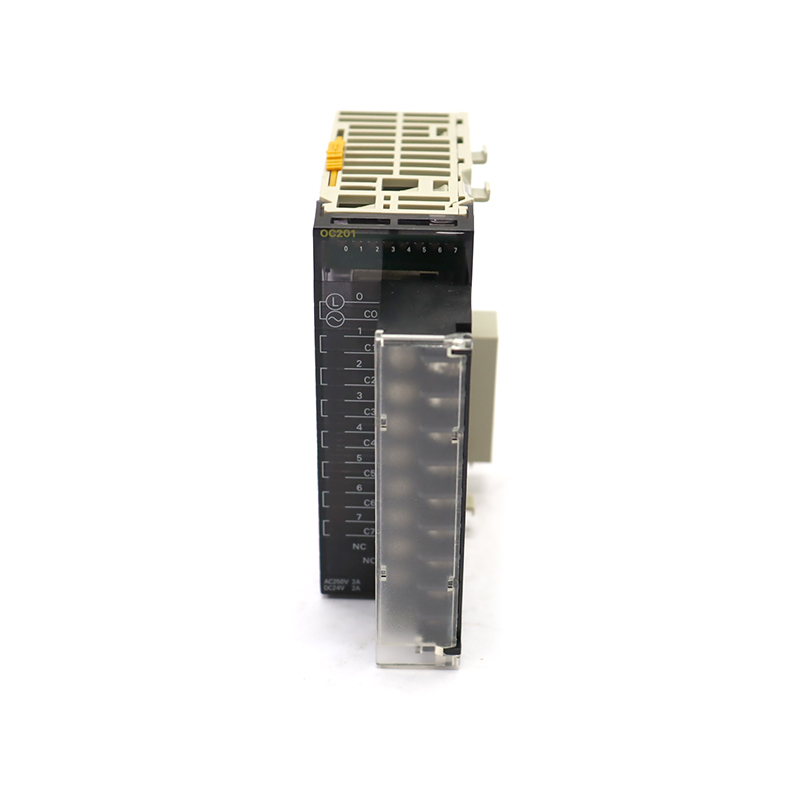

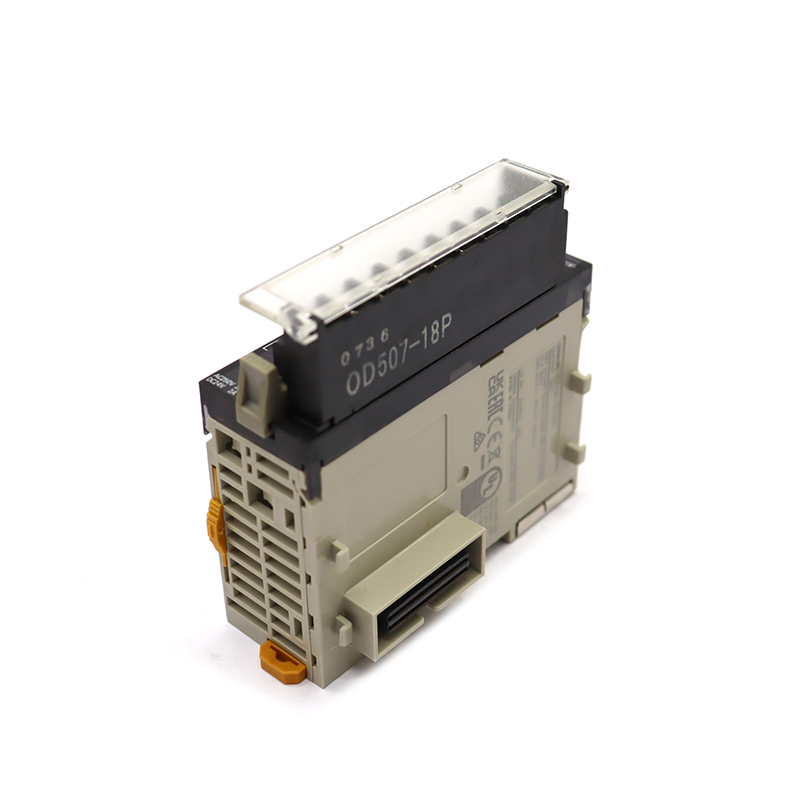

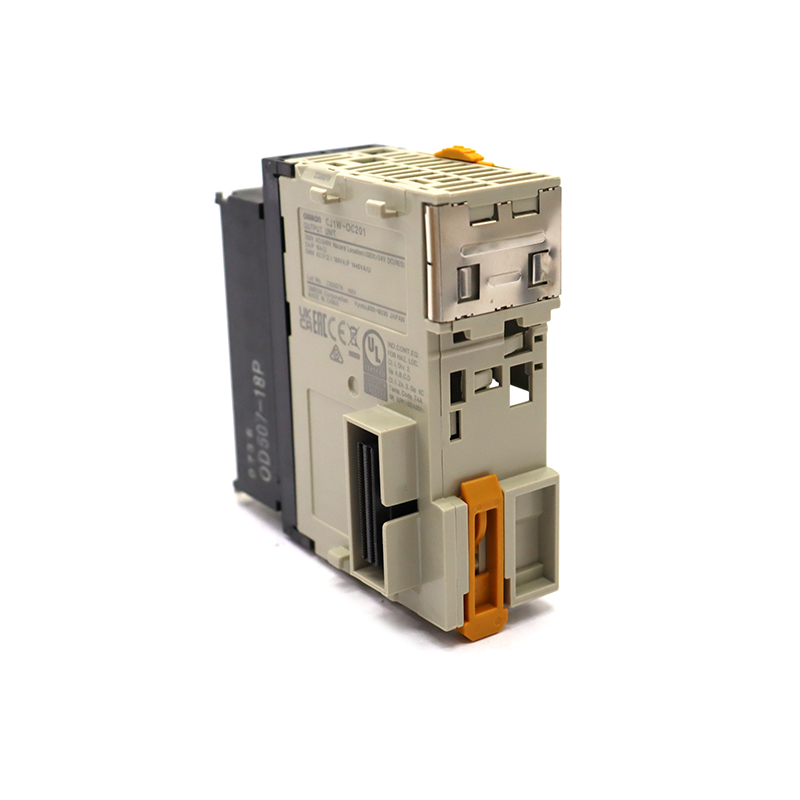

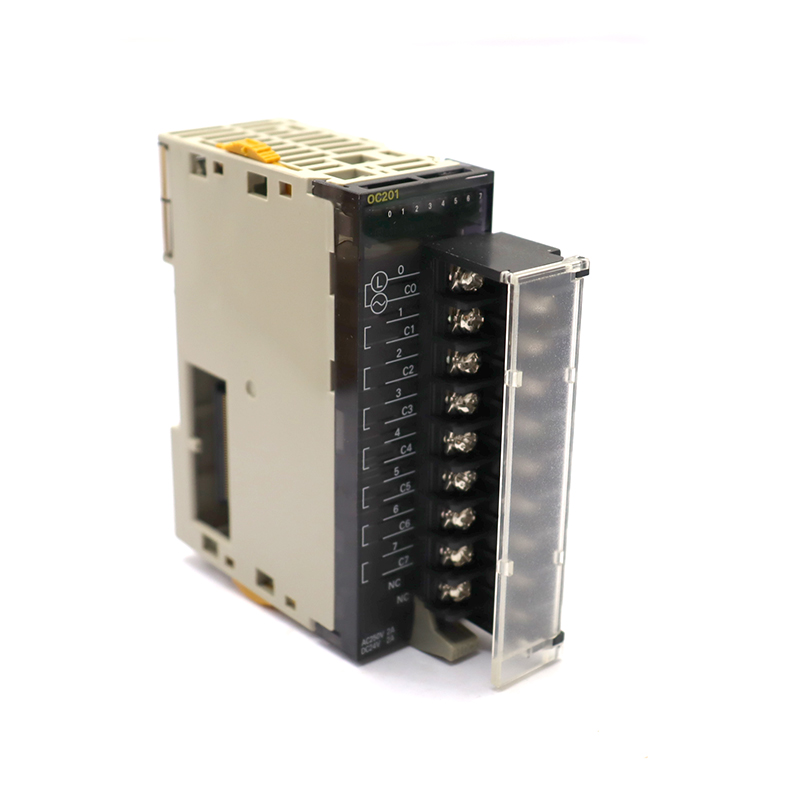

Omron CJ Series 16-point Relay Output Unit - DUOMI Efficient Global Automation Spare Parts Supply Chain

Parameter	Value
Number of Outputs	16 points
Output Type	Relay output
Max. Switching Capacity	AC250V/2A (resistive load), DC24V/2A
Min. Switching Capacity	DC5V/1mA
Mechanical Life	50 million operations
Electrical Life	100,000 operations (rated load)
Response Time	ON: approx. 15ms, OFF: approx. 10ms
Isolation Method	Relay isolation
Rated Power Consumption	5VDC 100mA (from backplane)
Operating Temperature	-25°C to +75°C

Parameter

Value

Number of Outputs

16 points

Output Type

Relay output

Max. Switching Capacity

AC250V/2A (resistive load), DC24V/2A

Min. Switching Capacity

DC5V/1mA

Mechanical Life

50 million operations

Electrical Life

100,000 operations (rated load)

Response Time

ON: approx. 15ms, OFF: approx. 10ms

Isolation Method

Relay isolation

Rated Power Consumption

5VDC 100mA (from backplane)

Operating Temperature

-25°C to +75°C

Product Details

Core Function: Provides 16 independent relay output channels, each capable of controlling different load devices
Load Capacity: Each point supports AC250V/2A (cosφ=1) or DC24V/2A loads
Electrical Isolation: Uses relay isolation to provide electrical isolation between input/output and between channels
Status Indication: Each output point is equipped with LED indicator for real-time status display
Wiring Method: Uses removable terminal blocks for easy installation and maintenance
Compatibility: Fully compatible with Omron CJ series PLCs, supports hot swapping

Product Parameters

Parameter	Value
Number of Outputs	16 points
Output Type	Relay output
Max. Switching Capacity	AC250V/2A (resistive load), DC24V/2A
Min. Switching Capacity	DC5V/1mA
Mechanical Life	50 million operations
Electrical Life	100,000 operations (rated load)
Response Time	ON: approx. 15ms, OFF: approx. 10ms
Isolation Method	Relay isolation
Rated Power Consumption	5VDC 100mA (from backplane)
Operating Temperature	-25°C to +75°C
