Detailed Description:
-

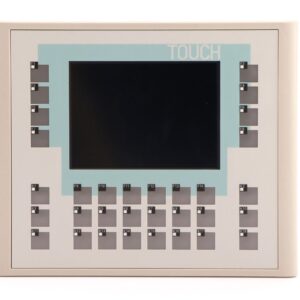

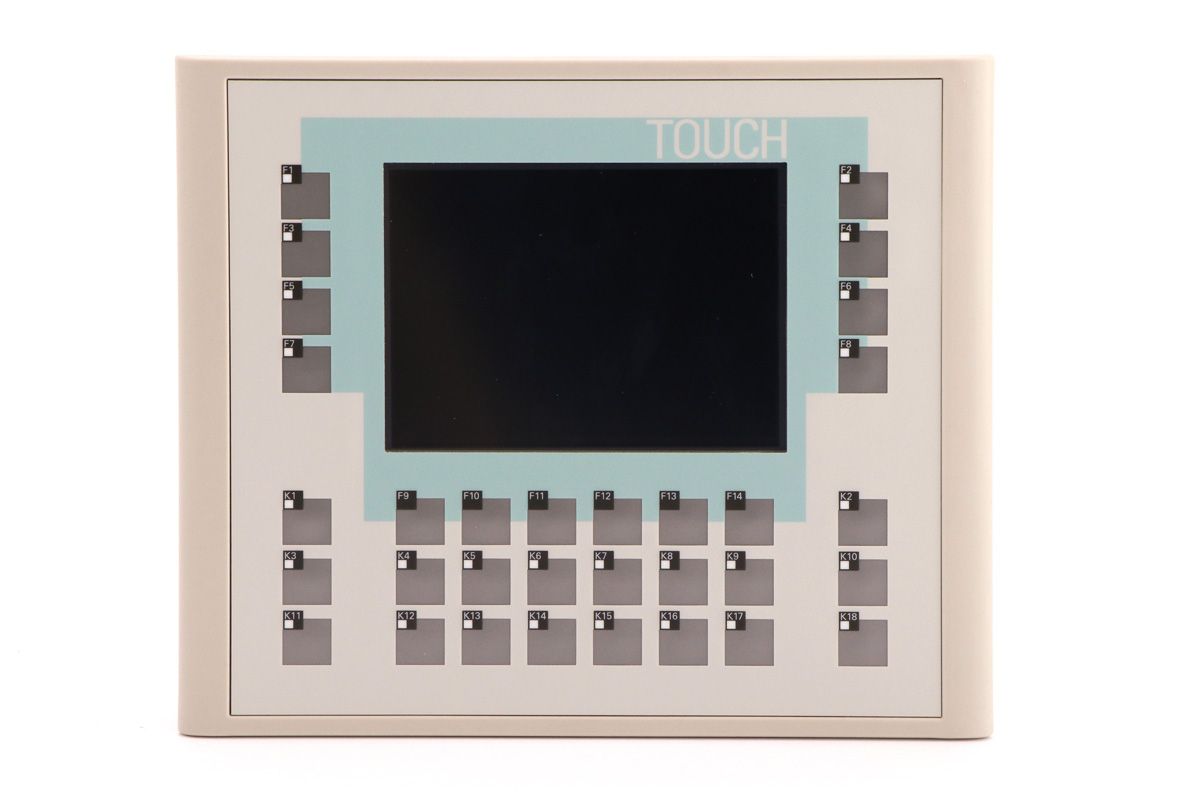

High-Definition Display & Flexible Operation: The 8-inch high-brightness TFT display supports 256 colors or more for clear visual effects. It uses a resistive touchscreen that can be operated with gloves, combined with 8 function keys, 4 system keys, and 1 Emergency Stop button with LED on the panel, providing flexible and reliable operation.
-
Powerful Data Processing Capability: Equipped with a high-performance processor and ample user memory (approx. 12 MB), supporting complex screens, numerous variables, and advanced functions. Integrated Profinet (PN) and Profibus (DP) dual-network interfaces allow simultaneous connection to PLCs on different buses (e.g., S7-300/400, S7-1200/1500) for efficient data exchange.
-
Rich Communication & Storage Functions: Includes a USB 2.0 host port for connecting mice, keyboards, and USB flash drives, facilitating data backup, recipe transfer, and software updates. Supports multiple communication protocols with deep integration into Siemens PLCs. Built-in recipe memory and data logging function allow saving production data and alarm records to external storage media.
-
Robust Industrial Design: The front panel has a high protection rating of IP65, resistant to dust and water jets, suitable for harsh industrial environments. The metal housing is sturdy and durable, with a wide temperature range design ensuring stable operation from 0 to 50°C.
-
Efficient Engineering Development: Configured using Siemens WinCC flexible or TIA Portal (WinCC Professional) software. The graphical development environment is efficient and convenient, supports simulation and debugging, and can significantly shorten project development cycles.
Key Specifications:
| Parameter | Details |
| Model | 6AV6642-0DA01-1AX1 |
| Series | SIMATIC MP 277 (Multi Panel) |
| Display Type | 8-inch TFT Color LCD (256 colors) |
| Resolution | 800 x 600 pixels (SVGA) |
| Operation | Resistive Touchscreen + 8 Function Keys + 4 System Keys |
| Integrated Interfaces | 1x PROFINET (RJ45), 1x PROFIBUS DP (9-pin Sub-D), 2x USB 2.0 (Host) |
| Operating System | Microsoft Windows CE 6.0 |
| User Memory | Approx. 12 MB |
| Supply Voltage | 24 V DC (typical range: 19.2 – 28.8 V DC) |
| Protection Class | Front Panel IP65 |
| Mounting | Panel Mount (Flush Mounting) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Configuration Software | WinCC flexible 2008 / TIA Portal WinCC Professional |
