Базовый контроллер SIMATIC S7-1200

The Siemens SIMATIC S7-1200 Basic Controller is designed for compact automation solutions that integrate communication and technological functions, offering a scalable and flexible platform to meet various industrial automation needs. The expandable SIMATIC S7-1200 controller comes with built-in input, output, and communication options, and supports modular expansion. It includes digital and analog I/O modules, along with a variety of communication modules, to adapt to specific automation tasks. The controller is equipped with advanced technologies such as high-speed counters, pulse width modulation, pulse sequence outputs, speed control, and positioning, making it suitable for applications in temperature control, pump and fan management, conveyor technology, and even packaging machinery.

Key Features

  • High Flexibility and Modular Design: The CPU can be easily expanded with additional I/O modules without requiring extra space, providing an adaptable solution for various tasks.
  • Integrated Technologies: Optimized for loop control, weighing systems, energy management, high-speed counting, remote control, RFID, and condition monitoring.
  • Comprehensive Automation: The system allows for highly intuitive operation during engineering, ensuring a seamless user experience.
  • Networking: The built-in PROFINET interface ensures scalability and flexibility, making it easy to integrate into larger systems.
  • Integrated Security: Offers comprehensive protection against unauthorized access, copying, and manipulation, ensuring data integrity and security.
  • Built-in Diagnostics: Diagnostic messages are displayed in simple plain text on the TIA Portal, CPU Web Server, SIMATIC Automation Tool, и SIMATIC HMI, eliminating the need for additional programming.
  • Safety Integration: The fail-safe CPU can execute standard and safety-related programs up to SIL3/PLe levels, ensuring high safety standards for critical applications.


Controller – Модуль ПЛК

Image Manufacturer Part Number Описание Expandability Documents

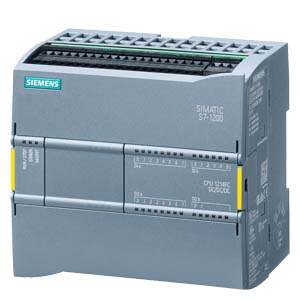

SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 100 KB NOTE: !!V14 SP2 PORTAL SOFTWARE IS REQUIRED TO PROGRAM!! 6ES72141AF400XB0 CPU 1214 FC，DC/DC/DC，14DI/10DO Non-Expandable 6ES72141AF400XB0.pdf
SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 100 KB NOTE: !!V14 SP2 PORTAL SOFTWARE IS REQUIRED TO PROGRAM!! 6ES72141AG400XB0 AUTOMATION – S7-1200 CPUS Non-Expandable 6ES72141AG400XB0.pdf
SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 100 KB NOTE: !!V14 SP2 PORTAL SOFTWARE IS REQUIRED TO PROGRAM!! 6ES72141BG400XB0 CPU 1214C, AC/DC/RELAY, 14DI/10D Non-Expandable 6ES72141BG400XB0.pdf
SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 100 KB NOTE: !!V14 SP2 PORTAL SOFTWARE IS REQUIRED TO PROGRAM!! 6ES72141HG400XB0 CPU 1214C, DC/DC/RELAY, 14DI/10D Non-Expandable 6ES72141HG400XB0.pdf
SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 100 KB NOTE: !!V14 SP2 PORTAL SOFTWARE IS REQUIRED TO PROGRAM!! 6ES72151BG400XB0 CPU 1215C, AC/DC/RLY, 14DI/10DO/ Non-Expandable 6ES72151BG400XB0.pdf
SIMATIC S7-1200, CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 100 KB NOTE: !!V14 SP2 PORTAL SOFTWARE IS REQUIRED TO PROGRAM!! 6ES72151HG400XB0 SIMATIC S7-1200 CPU 1215C DCDCRL Non-Expandable 6ES72151HG400XB0.pdf


Controller – Accessories

Image Manufacturer Part Number Описание For Use With/Related Products Documents
1753936463643.jpg 6ES72411CH301XB0 OPT COMM SIMATIC S7-1200 SIMATIC S7-1200 6ES72411CH301XB0.pdf
1753936485101.jpg 6ES72741XF300XA0 SIMULATOR MODULE SIMATIC S7-1200 SIMATIC S7-1200 6ES72741XF300XA0.pdf
1753936485101.jpg 6ES72741XH300XA0 SIMULATOR MODULE SIMATIC S7-1200 SIMATIC S7-1200 6ES72741XH300XA0.pdf

Controllers – Programmable (ПЛК, PAC)

Image Manufacturer Part Number Описание For Use With/Related Products Number of Inputs and Type Number of Outputs and Type Documents
企业微信截图_17539448906393.png 6ES72211BF320XB0 INPUT MODULE 8 DIGITAL 24V SIMATIC S7-1200 8 – Digital – 6ES72211BF320XB0.pdf
企业微信截图_175394493626.png 6ES72211BH320XB0 INPUT MODULE 16 DIGITAL 24V SIMATIC S7-1200 16 – Digital – 6ES72211BH320XB0.pdf
企业微信截图_17539449437430.png 6ES72221AD300XB0 OUTPUT MODULE 4 DIGITAL 5V SIMATIC S7-1200 – 4 – Digital 6ES72221AD300XB0.pdf
企业微信截图_17539449437430.png 6ES72221BD300XB0 OUTPUT MODULE 4 DIGITAL 24V SIMATIC S7-1200 – 4 – Digital 6ES72221BD300XB0.pdf
企业微信截图_175394493626.png 6ES72221BF320XB0 OUTPUT MODULE 8 DIGITAL 24V SIMATIC S7-1200 – 8 – Digital 6ES72221BF320XB0.pdf
企业微信截图_175394493626.png 6ES72221BH320XB0 OUTPUT MODULE 16 DIGITAL 24V SIMATIC S7-1200 – 16 – Digital 6ES72221BH320XB0.pdf
企业微信截图_17539449437430.png 6ES72230BD300XB0 I/O MOD 2 DIG 2 DIG 20.4-28.8V SIMATIC S7-1200 2 – Digital 2 – Digital 6ES72230BD300XB0.pdf
企业微信截图_17539449437430.png 6ES72233AD300XB0 I/O MOD 2 DIG 2 SOLID STATE 5V SIMATIC S7-1200 2 – Digital 2 – Solid State 6ES72233AD300XB0.pdf
企业微信截图_17539449786104.png 6ES72266BA320XB0 INPUT MODULE 16 DIGITAL 24V SIMATIC S7-1200 16 – Digital – 6ES72266BA320XB0.pdf
企业微信截图_17539449786104.png 6ES72266DA320XB0 OUTPUT MODULE 4 DIG 20.4-28.8V SIMATIC S7-1200 – 4 – Digital 6ES72266DA320XB0.pdf
企业微信截图_17539449904735.png 6ES72315QA300XB0 INPUT MODULE 1 ANALOG 24V SIMATIC S7-1200 1 – Analog – 6ES72315QA300XB0.pdf
企业微信截图_17539450013799.png 6ES72324HA300XB0 OUTPUT MODULE 1 ANALOG SIMATIC S7-1200 – 1 – Analog 6ES72324HA300XB0.pdf
企业微信截图_17539450123527.png 6ES72324HB320XB0 OUTPUT MODULE 2 ANALOG 24V SIMATIC S7-1200 – 2 – Analog 6ES72324HB320XB0.pdf
企业微信截图_17539450206910.png 6ES72324HD320XB0 OUTPUT MODULE 4 ANALOG 24V SIMATIC S7-1200 – 4 – Analog 6ES72324HD320XB0.pdf
企业微信截图_17539450206910.png 6ES72344HE320XB0 I/O MODULE 4 ANALOG 2 ANALOG 24V SIMATIC S7-1200 4 – Analog 2 – Analog 6ES72344HE320XB0.pdf
企业微信截图_17539450312245.png 6GK72435DX300XE0 COMMUNICATIONS MODULE 24V SIMATIC S7-1200 – – 6GK72435DX300XE0.pdf
